ROCKWOOL · ProRox® wired mats

ROCKWOOL ProRox® WM 961

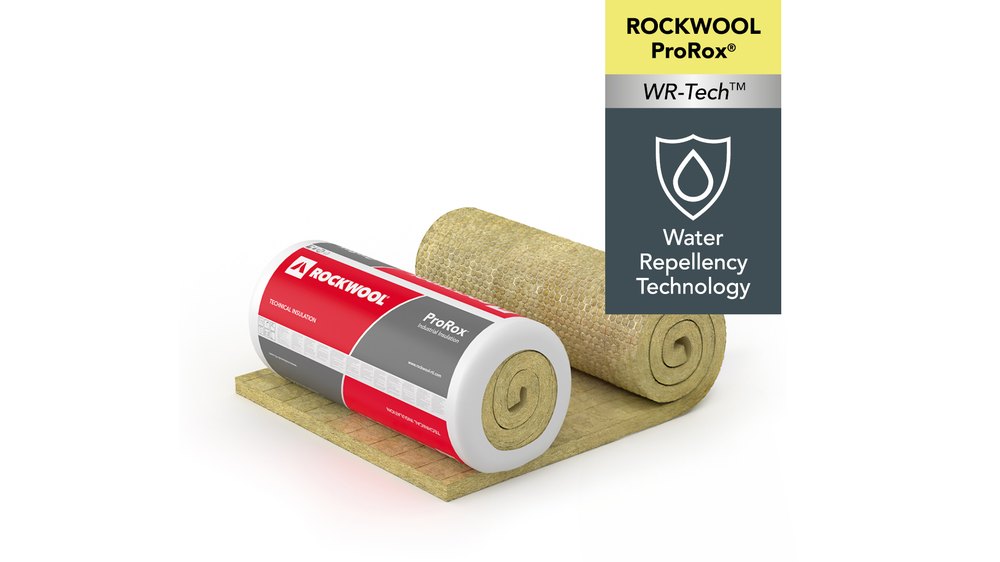

ProRox WM 961 is a lightly bonded heavy-duty stone wool insulation mat stitched on galvanised wire mesh with galvanised steel wire. The wired mats are produced with an innovative water-repellent binder, known as WR-Tech™, to mitigate the risk of corrosion…

0.038 W/m·K
λ at 50 °C: Euroclass A1L
Reaction to fire (EN 13501-1): ≤ 0.2 kg/m²
Water absorption

Richiedi un preventivo Scheda tecnica (PDF) ↗

Fornito da World Steel con il vostro edificio in acciaio o separatamente – un ordine, una spedizione, un partner.

Panoramica

Informazioni su ProRox® WM 961

ProRox WM 961 is a lightly bonded heavy-duty stone wool insulation mat stitched on galvanized wire mesh with galvanized wire. The wired mats are produced with an innovative water-repellent binder, known as WR-Tech™, to mitigate the risk of corrosion under insulation (CUI). WR-Tech ensures our stone wool maintains its superior water repellency even at elevated operating temperatures within the CUI range, while preserving its excellent thermal performance in use.

Application: The wired mat is suitable for the thermal and acoustic insulation of industrial installations exposed to the environment, such as outdoor industrial pipework, reactors and furnaces at petrochemical plants and refineries.

Vantaggi principali

Suitable for heavy duty applications which are exposed to high temperatures and high mechanical loads
Resistant to high temperatures
Flexible application
Available in a wide range of thicknesses
Suitable for use over stainless steel

World Steel · hub per l'involucro edilizio

Come utilizziamo ProRox® WM 961 negli edifici in acciaio

World Steel builds the structures of process plants, boiler houses and power stations; ROCKWOOL ProRox® WM 961 insulates the large pipes, vessels and ducts inside them. We supply ProRox® wired mats with the steel package for the plant.

01Specificato insieme alla struttura – spessore, densità e rivestimento adeguati al progetto di copertura, pareti e antincendio.
02Quantità ricavate dallo stesso modello 3D di acciaio, arcarecci e rivestimenti.
03Imballato e spedito con il pacchetto acciaio – un unico programma di consegna in cantiere.

Applicazioni

Dove si usa ProRox® WM 961

Industrial Insulation

Dati tecnici

ProRox® WM 961 – proprietà tecniche

Thermal conductivity

Proprietà	Unità	Valore
Thermal conductivity (50 °C)	W/m·K	0.038
Thermal conductivity (100 °C)	W/m·K	0.042
Thermal conductivity (150 °C)	W/m·K	0.048
Thermal conductivity (200 °C)	W/m·K	0.056
Thermal conductivity (250 °C)	W/m·K	0.065
Thermal conductivity (300 °C)	W/m·K	0.073

Technical properties

Proprietà	Unità	Valore
Reaction to fire	Euroclass	A1L
Water absorption≤ 0.2 kg/m² (after 24 hrs. pre-heating at 250°C)	kg/m²	≤ 0.2 kg/m²
Moisture Absorption	%	1

Valori pubblicati dal produttore per questo mercato. Prima dell'ordine verificate sempre la scheda tecnica aggiornata e le approvazioni richieste per il vostro progetto. Pagina del produttore ↗
