Door hardware & access control

Exit devices & exit trims

Grade 1 rim, surface vertical rod and mortise exit devices for single doors and pairs – heavy and maximum duty, fire-rated, with lever or pull trims.

ארצות הברית אוסטרליה / ניו זילנד אירופה

בקשת הצעת מחיר מפרטים

Surface vertical rod device for pairs.

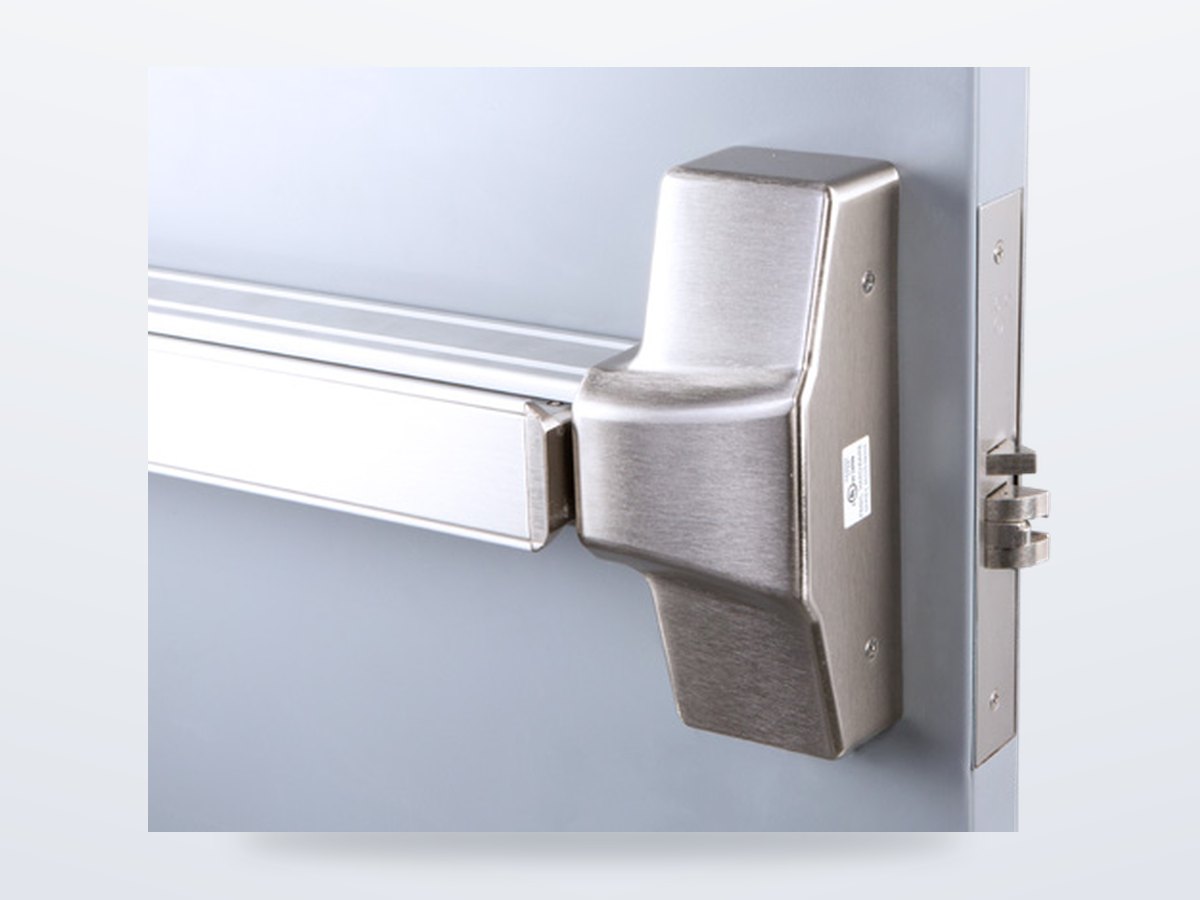

Mortise exit device – maximum duty.

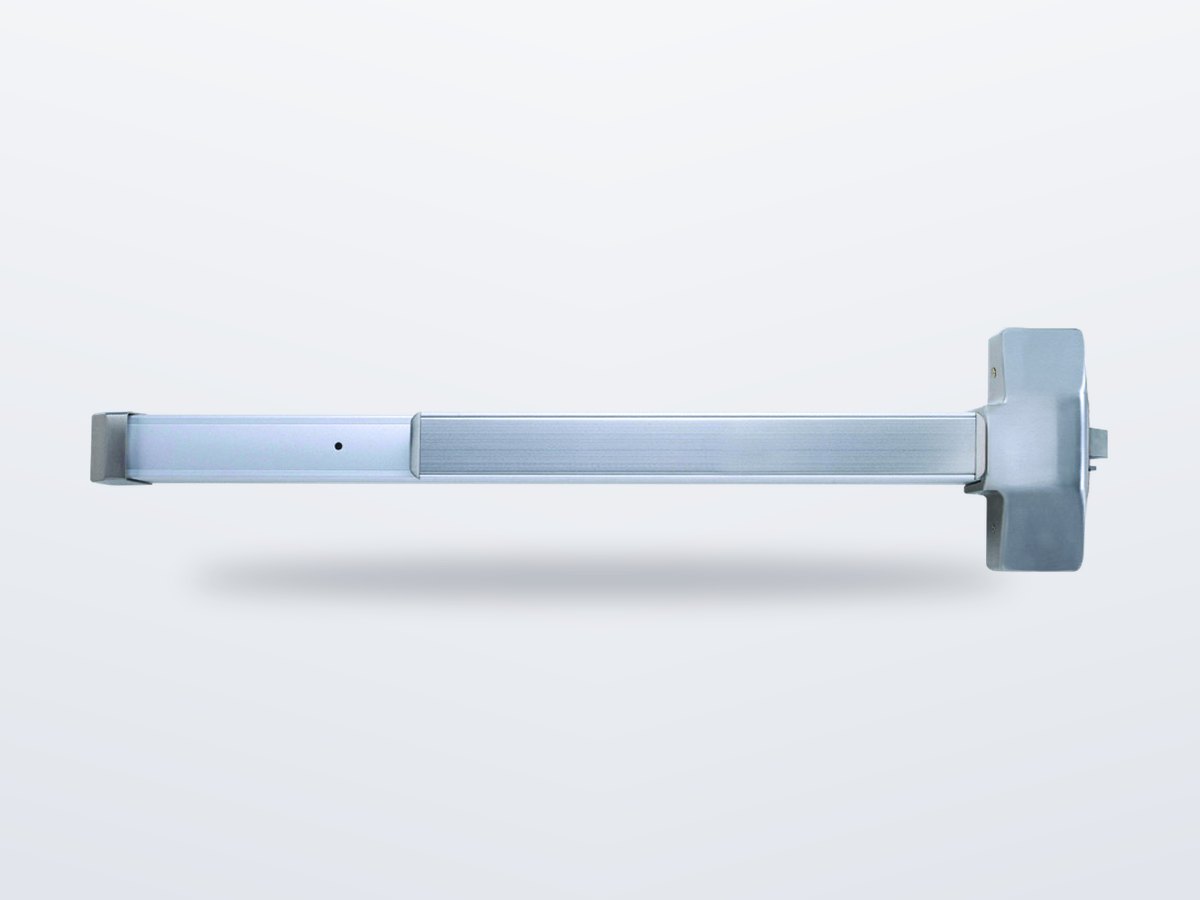

Rim device, field-sizable for 28 – 48 in doors.

BHMA Grade 1
Rim, surface vertical rod, mortise
Heavy and maximum duty
Fits 28 – 48 in doors, field-sizable
3 h fire-rated versions
Non-handed, lever / pull / key trims

Single door or pair

Exit device types
Type	Doors	Duty	Notes
Rim	Single doors; pairs with mullion	Heavy / maximum	Latch on the door edge, surface strike
Surface vertical rod	Pairs without mullion	Heavy / maximum	Top and bottom rods latch into head and floor
Mortise lock	Single doors	Maximum	Mortise lock body – strongest, most functions

Stainless steel latch bolts with ⅝ in throw, adjustable strikes and non-handed design simplify installation on new and retrofit doors. Exit trims – lever, pull, key-retract or dummy – provide entry from the outside.

Code first

Exit devices are life-safety hardware. Doors on escape routes must open with one push, without a key or special knowledge; on fire doors the device must be fire-rated (fire exit hardware, no dogging). We select devices from the egress and fire schedule of your drawings.

תקנים ודרישות לפי שוק

התקנים שלפיהם World Steel מתכננת, מייצרת ומתעדת מוצר זה – ודרישות הגיאומטריה והעומס העיקריות בכל שוק.

ארצות הברית

ANSI/BHMA A156.3Exit devices
NFPA 80 · UL 10CHardware on fire doors
ICC A117.1 / ADAAccessible operating hardware
NFPA 101Life safety code – egress hardware

כל תקני United States →

אוסטרליה / ניו זילנד

AS 1905.1Hardware on fire-resistant doorsets
NCC D3Egress – door hardware on exits

כל תקני Australia & New Zealand →

אירופה

EN 1125Panic exit devices with push bar
EN 179Emergency exit devices

CE marking: EN 1125 for public escape routes

כל תקני Europe →

סיכום להתמצאות בלבד – מפרט הפרויקט, מהדורת התקן שאומצה והרשות המוסמכת הם הקובעים.

גימורים

גימור	תקנים / הערות
Finishes	US32D satin stainless, AL aluminium, US26D by series
Keying	Keyed different, keyed alike, master and grand master, construction master; 6-pin C-keyway, popular keyways and small-format interchangeable core (SFIC)
