World SteelBuilding trust, Assuring success

WS overhead cranes, gantries & hoists

WS crane accessories & spare parts

Crane components and spares: control panels, pendants, radio remotes, geared motors, inverters, conductor rails, collectors, wheels and cable reels.

Hoa KỳÚc / NZChâu Âu

Yêu cầu báo giá Thông số kỹ thuật

Crane electrical control panel
Crane pendant push-button stationsPendant push-button stations. Enclosed conductor railsEnclosed conductor rails. Geared crane wheelGeared crane wheel block. Crane travel geared motorTravel geared motor. Cable reel on a gantry craneCable reel.
  • Control panels, pendants, radio remotes
  • Travel geared motors and inverters
  • Conductor rails, collectors, tensioners
  • Crane wheels and geared wheel blocks
  • Cable reels, wire rope, sensors

Components

Crane accessories
ComponentDescription
Electric control panelContactors, overload relays, inverters and main isolator in an IP-rated enclosure.
Cable reelSpring or motor reel for power to mobile gantries and transfer carts.
Pendant push-button stations2- to 12-button pendants with emergency stop and two-step speed buttons.
Radio remote controlIndustrial radio control with emergency stop and receiver in the panel.
Travel geared motorsBrake motors with helical, bevel or parallel-shaft gearboxes for long and cross travel.
Frequency invertersSoft start and stop, variable speed and reduced load swing.
Current collectors (3P / 4P)Collector arms running in the enclosed conductor rail.

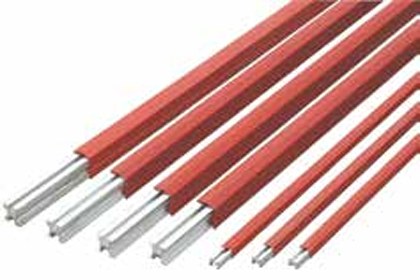

Enclosed conductor railInsulated safety conductor rail for long and cross travel.
Rail tensioners (strainers)Tension and anchor conductor rails and festoon wires.
Crane wheelsForged or cast wheels with bearings, flanged or flangeless.

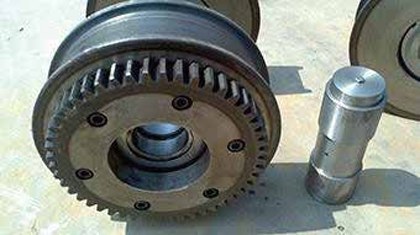

Geared wheel blocksWheel with integral gear ring for driven end carriages.
Steel wire rope & drumsGalvanised or bright wire rope, grooved drums and rope guides.
Electric control panel
Electric control panel – Contactors, overload relays, inverters and main isolator in an IP-rated enclosure.
Cable reel
Cable reel – Spring or motor reel for power to mobile gantries and transfer carts.

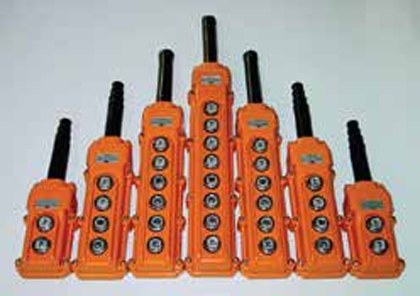

Pendant push-button stations
Pendant push-button stations – 2- to 12-button pendants with emergency stop and two-step speed buttons.

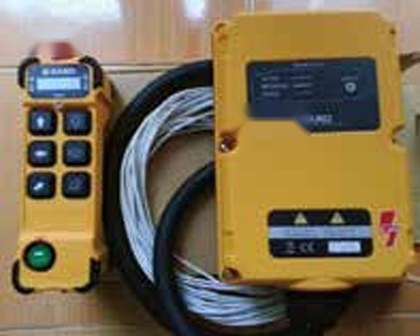

Radio remote control
Radio remote control – Industrial radio control with emergency stop and receiver in the panel.

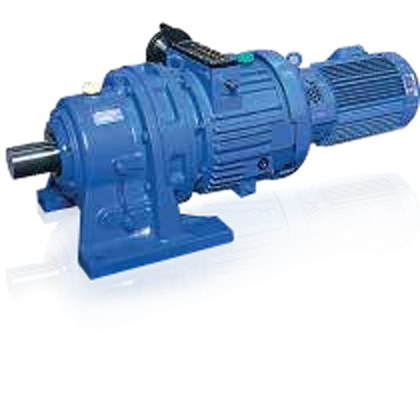

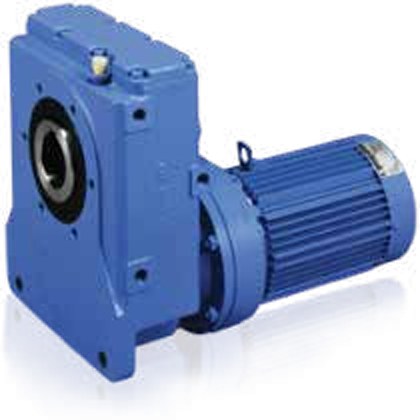

Travel geared motors
Travel geared motors – Brake motors with helical, bevel or parallel-shaft gearboxes for long and cross travel.

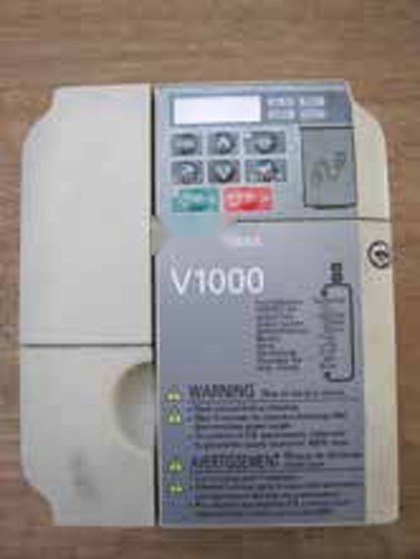

Frequency inverters
Frequency inverters – Soft start and stop, variable speed and reduced load swing.

Spare parts and service

Components are supplied for new WS cranes and as spare parts for existing cranes. Our service team carries out inspection, maintenance, repair and upgrades – for example adding inverters, radio control or load limiters – and organises periodic inspection with the authority.

Tiêu chuẩn và yêu cầu theo thị trường

Các quy chuẩn mà World Steel áp dụng để thiết kế, gia công và lập hồ sơ cho sản phẩm này – cùng các yêu cầu chính về hình học và tải trọng tại từng thị trường.

Hoa Kỳ

  • CMAA 70 / CMAA 74Top-running and single girder crane specifications
  • ASME B30.2 · B30.17Overhead and gantry cranes – safety
  • ASME B30.16 · ASME HST-4Overhead hoists
  • OSHA 1910.179Overhead and gantry cranes
Load test
125 % of rated load (ASME B30.2)
Tất cả tiêu chuẩn United States →

Úc / NZ

  • AS 1418.1Cranes – general requirements
  • AS 1418.18Crane runways and monorails
  • AS 2550.1Cranes – safe use
  • AS 4100 · AS/NZS 1554.1Steel design and welding
Registration
Design and item registration per state WHS rules
Tất cả tiêu chuẩn Australia & New Zealand →

Châu Âu

  • EN 15011Bridge and gantry cranes
  • EN 14492-2Power-driven hoists
  • EN 13001 seriesCrane design – general, actions, limit states
  • Machinery DirectiveCE marking of the complete crane
Load test
Static 125 % and dynamic 110 % per EN 15011 / EN 14492-2
Tất cả tiêu chuẩn Europe →

Nội dung chỉ mang tính tham khảo – chỉ dẫn kỹ thuật của dự án, phiên bản quy chuẩn được áp dụng và cơ quan có thẩm quyền là căn cứ quyết định.

Hoàn thiện bề mặt

Hoàn thiện bề mặtTiêu chuẩn / ghi chú
PaintBlast cleaned, epoxy primer + polyurethane topcoat in safety yellow or project colour
MarkingRated capacity and safety slogans on the girder in the client's language
EnvironmentTropical, cold, high-temperature or chemical execution for hoists

Câu hỏi thường gặp

Can you upgrade an existing crane?

Yes – inverter drives, radio control, load limiters, new conductor systems and replacement wheels or hoists can be fitted to existing cranes after inspection.
