ROCKWOOL · ProRox® wired mats
ROCKWOOL ProRox® WM 950

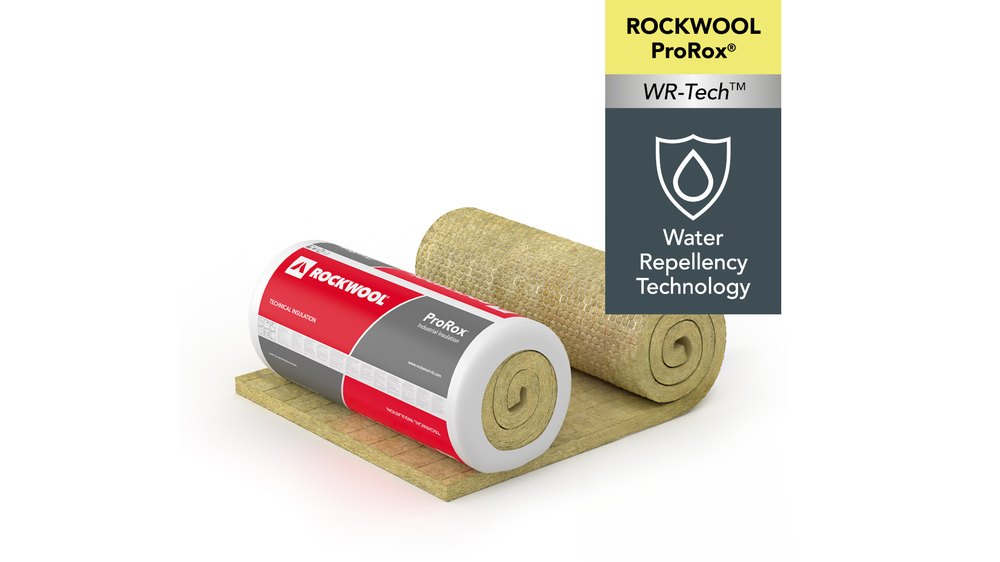

ProRox WM 950 is a lightly bonded stone wool insulation mat stitched on galvanized wire mesh with galvanized wire. Stainless steel mesh and binding wire (SW) are available upon request preserving its excellent thermal performance in use.
- 0.038 W/m·K
- λ at 50 °C
- Euroclass A1L
- Reaction to fire (EN 13501-1)
- ≤ 1,0 kg/m²
- Water absorption
Request a quotationData sheet (PDF) ↗
Supplied by World Steel with your steel building or on its own – one order, one shipment, one partner.
Overview
About ProRox® WM 950
ProRox WM 950 is a lightly bonded stone wool insulation mat stitched on galvanized wire mesh with galvanized wire. Stainless steel mesh, stainless steel binding wire are available upon request.
Application: The wired mat is suitable for the thermal and acoustic insulation of industrial installations exposed to the environment, such as outdoor industrial pipework, reactors and furnaces at petrochemical plants and refineries.
Key benefits
- Suitable for high temperature application
- Flexible application
- Available in a wide range of thicknesses
- Suitable for use over stainless steel
World Steel · building envelope hub
How we use ProRox® WM 950 in steel buildings
World Steel builds the structures of process plants, boiler houses and power stations; ROCKWOOL ProRox® WM 950 insulates the large pipes, vessels and ducts inside them. We supply ProRox® wired mats with the steel package for the plant.
- 01Specified with the structure – thickness, density and facing matched to the roof, wall and fire design.
- 02Quantities taken from the same 3D model as the steel, purlins and cladding.
- 03Packed and shipped with the steel package – one delivery schedule to site.
Applications
Where ProRox® WM 950 is used
- Industrial Insulation
Technical data
ProRox® WM 950 – technical properties
Thermal conductivity
| Property | Unit | Value |
|---|---|---|
| Thermal conductivity (50 °C) | W/m·K | 0.038 |
| Thermal conductivity (100 °C) | W/m·K | 0.046 |
| Thermal conductivity (150 °C) | W/m·K | 0.053 |
| Thermal conductivity (200 °C) | W/m·K | 0.062 |
| Thermal conductivity (250 °C) | W/m·K | 0.071 |
| Thermal conductivity (300 °C) | W/m·K | 0.080 |
Technical properties
| Property | Unit | Value |
|---|---|---|
| Reaction to fire | Euroclass | A1L |
| Water absorption | kg/m² | ≤ 1,0 kg/m² |
| Moisture Absorption | % | 1 |
Values as published by the manufacturer for this market. Always check the current data sheet and the approvals required for your project before ordering. Manufacturer page ↗
Documents
Data sheets & documents
ROCKWOOL
ROCKWOOL
ROCKWOOL
ROCKWOOL
ROCKWOOLFAQ
Frequently asked questions
What is a wired mat?
Stone wool stitched on galvanised or stainless wire mesh, used to insulate large pipes, vessels and ducts in industrial plants.
