Metric hex bolts & screws – ISO 4014 / 4017, class 4.6 to 10.9

Metric hexagon bolts and set screws ISO 4014 / 4017 (DIN 931 / 933) in classes 4.6, 5.6, 8.8 and 10.9, M6 – M64, with ISO 4032 nuts – plain, zinc or galvanized.

Europe Australia / NZ United States

Request a quotation Specifications

Metric hex bolts M12 to M24 with nuts

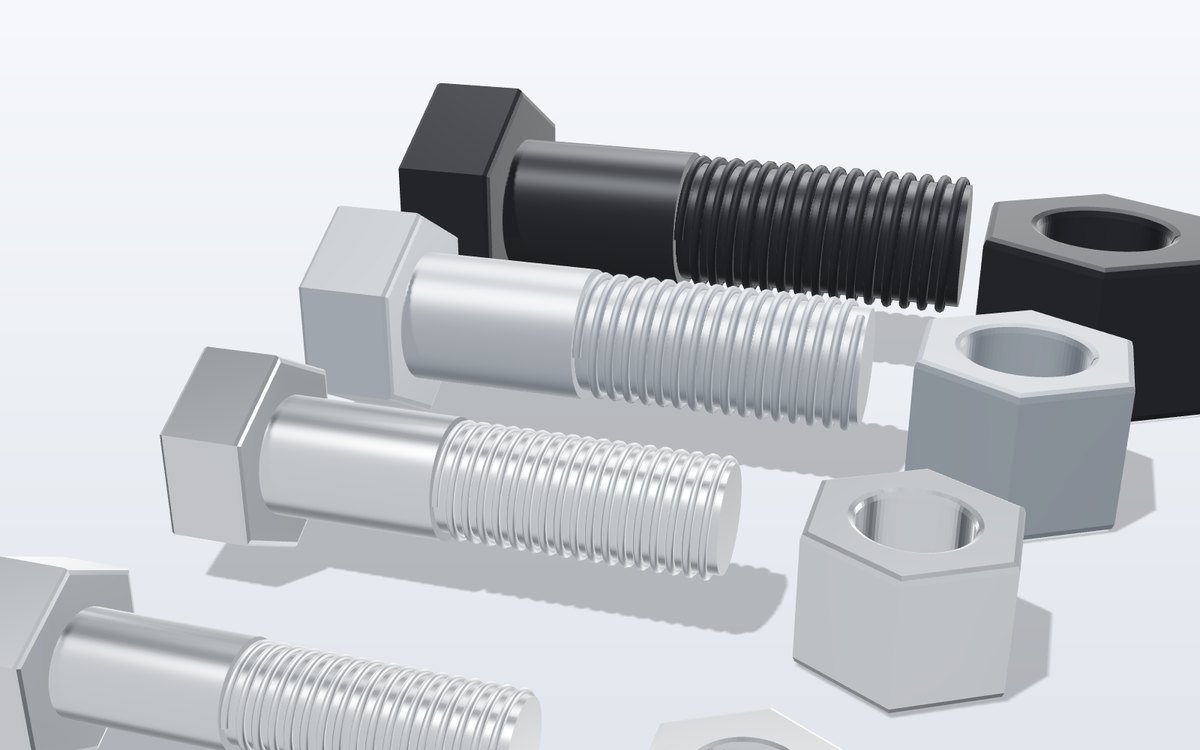

Metric hexagon bolts close up

ISO 4014 part-threaded and ISO 4017 fully threaded.

ISO 4014 part thread · ISO 4017 full thread
Classes 4.6, 5.6, 8.8, 10.9 (ISO 898-1)
M6 – M64, coarse and fine pitch
Nuts ISO 4032 / 4033, washers ISO 7089 / 7091
Zinc plated, HDG, black or stainless A2 / A4
JIS, GB and TCVN equivalents

What it is

General-purpose metric hexagon bolts carry secondary members, equipment, handrails, grating clips and non-preloaded connections. The property class stamped on the head – 4.6, 8.8, 10.9 – gives the tensile strength (first number × 100 MPa) and the yield ratio (second number ÷ 10).

Mechanical properties

ISO 898-1 – minimum ultimate tensile load (kN)
Size	Pitch	As (mm²)	4.6	8.8	10.9
M12	1.75	84.3	33.7	67.4	87.7
M16	2.0	157	62.8	126	163
M20	2.5	245	98.0	203	255
M24	3.0	353	141	293	367
M30	3.5	561	224	466	583
M36	4.0	817	327	678	850
M42	4.5	1120	448	930	1165
M48	5.0	1470	588	1220	1529

8.8: fu = 800 MPa up to M16, 830 MPa above. Values are minimum ultimate loads As × fu – design resistance comes from the design code.

Equivalents

ISO 4014 / 4017 correspond to the withdrawn DIN 931 / 933, to EN ISO 4014 / 4017, JIS B 1180, GB/T 5782 / 5783 and TCVN 1916 in Vietnam. Head across-flats differ slightly between ISO and DIN for M10, M12, M14 and M22.

Standards and requirements by market

Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.

Europe

EN ISO 4014 / 4017Hexagon head bolts and screws
EN ISO 898-1Mechanical properties
EN 15048Non-preloaded structural bolting assemblies

All Europe standards →

Australia / NZ

AS 1111.1ISO metric hexagon bolts – commercial
AS 1110Precision hexagon bolts

All Australia & New Zealand standards →

United States

ASTM F568MMetric carbon and alloy steel fasteners

All United States standards →

Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.
