WS monorail hoist systems

WS monorail systems with electric wire rope or chain hoists on straight or curved beams (radius from 1.5 m) – for process lines, stores and machine loading.

United States Australia / NZ Europe

Request a quotation Specifications

Monorail hoist on an overhead beam in a building

Monorail serving a production line.

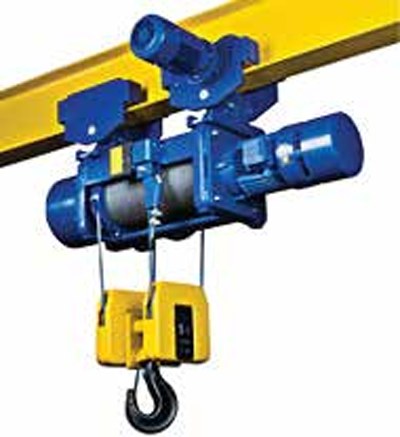

Monorail trolley hoist.

Straight or curved beams, radius ≥ 1.5 m
Standard or low-headroom trolley hoists
Hoist travel 20/6.5 or 20/5 m/min
Hung from the roof structure or own supports

What it is

A monorail carries a trolley hoist along a single beam – straight, curved or with switches – to move loads along a fixed path: between process stations, into a store or over machines. The beam is hung from the roof steel or from its own frames, which World Steel designs and fabricates with the building.

Duty group

Vietnam: cranes are designed, manufactured and inspected to TCVN 4244:2005 and the lifting-equipment safety regulation QCVN 07:2012/BLĐTBXH, with technical inspection before use.

Standards and requirements by market

Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.

United States

CMAA 70 / CMAA 74Top-running and single girder crane specifications
ASME B30.2 · B30.17Overhead and gantry cranes – safety
ASME B30.16 · ASME HST-4Overhead hoists
OSHA 1910.179Overhead and gantry cranes

Load test: 125 % of rated load (ASME B30.2)

All United States standards →

Australia / NZ

AS 1418.1Cranes – general requirements
AS 1418.18Crane runways and monorails
AS 2550.1Cranes – safe use
AS 4100 · AS/NZS 1554.1Steel design and welding

Registration: Design and item registration per state WHS rules

All Australia & New Zealand standards →

Europe

EN 15011Bridge and gantry cranes
EN 14492-2Power-driven hoists
EN 13001 seriesCrane design – general, actions, limit states
Machinery DirectiveCE marking of the complete crane

Load test: Static 125 % and dynamic 110 % per EN 15011 / EN 14492-2

All Europe standards →

Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.

Finishes

Finish	Standards / notes
Paint	Blast cleaned, epoxy primer + polyurethane topcoat in safety yellow or project colour
Marking	Rated capacity and safety slogans on the girder in the client's language
Environment	Tropical, cold, high-temperature or chemical execution for hoists
