WS stainless steel grating (SUS304 / SUS316)

WS stainless grating in SUS304 and SUS316 for food, pharmaceutical, chemical, water and marine areas – pickled and passivated after welding.

United States Australia / NZ Europe

Request a quotation Specifications

Stainless steel grating walkway beside process tanks

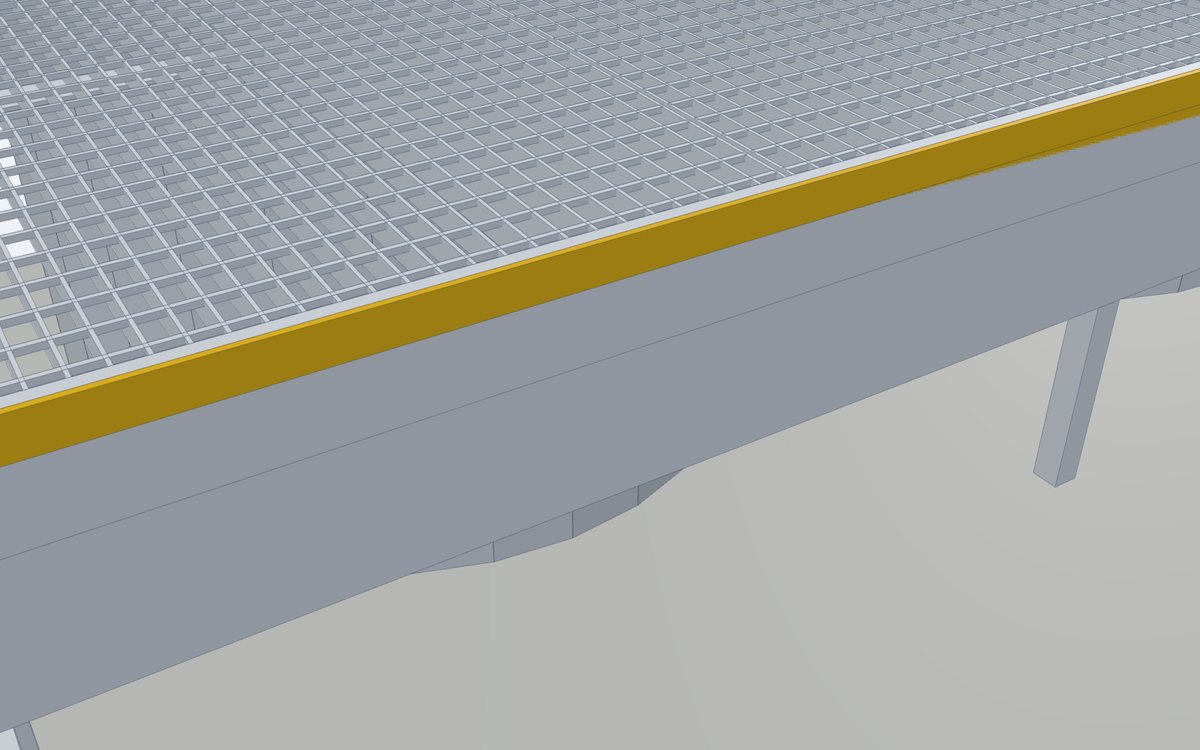

Close-up of stainless grating with 50 mm cross bar pitch

Close mesh stainless grating at a platform edge.

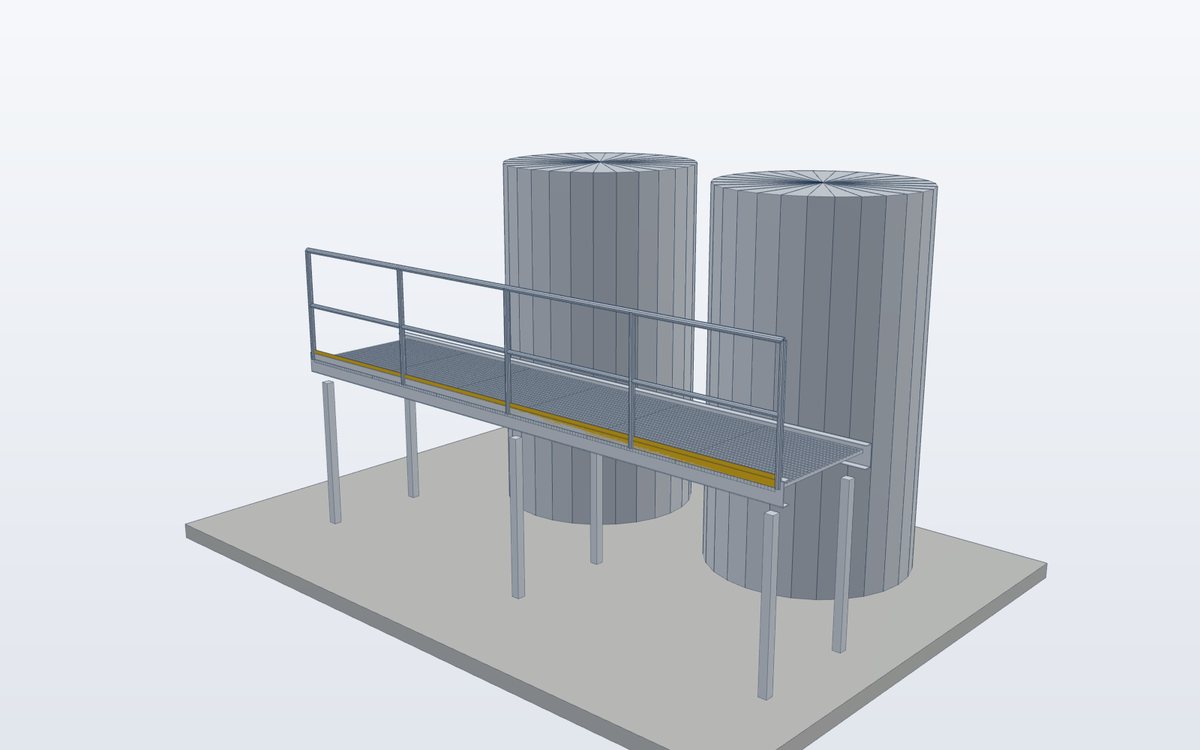

Stainless platform with handrail along process tanks

Stainless platform, handrail and toe plate.

SUS304 (1.4301) and SUS316 (1.4401) grades
No coating to chip, flake or contaminate
Pickled and passivated after welding
Same WS sizes, meshes and codes

Why stainless

Stainless steel grating needs no coating, cleans easily and resists corrosion where galvanised steel would be attacked – food and beverage, dairy, pharmaceutical, chemical plants, water and wastewater treatment, coastal and marine structures. SUS304 suits most hygienic and indoor uses; SUS316, with molybdenum, is chosen for chlorides, sea water and aggressive chemicals.

Fabrication

Separate tools and storage from carbon steel to prevent iron contamination.
Welded with matching stainless filler; heat tint removed by pickling.
Passivated and rinsed; surface finish agreed for hygienic areas.
Fasteners and clips in stainless steel of the same or better grade.

Load capacity is similar to carbon steel grating of the same size for selection purposes; final design uses the stainless steel properties of the project code (for example AISC Design Guide 27, AS/NZS 4673 or EN 1993-1-4).

Standards and requirements by market

Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.

United States

ASTM A240 / A276Stainless plate, strip and bars
ASTM A380 / A967Cleaning, descaling and passivation
AISC Design Guide 27Structural stainless steel

All United States standards →

Australia / NZ

AS/NZS 4673Cold-formed stainless steel structures
AS 1657Platforms and walkways

All Australia & New Zealand standards →

Europe

EN 10088Stainless steels
EN 1993-1-4Stainless steel design
EN ISO 14122-2Working platforms and walkways

All Europe standards →

Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.

Finishes

Finish	Standards / notes
Pickled & passivated	ASTM A380 / A967 or equivalent
Electropolished	On request for hygienic areas

Frequently asked questions

SUS304 or SUS316?

SUS304 for general hygienic and indoor use; SUS316 where chlorides, sea water or aggressive chemicals are present.

Can stainless grating be mixed with galvanised frames?

Yes, with isolating washers or sleeves where needed to avoid galvanic corrosion in wet conditions.

Specifications

Grades: SUS304 / AISI 304 / 1.4301 · SUS316 / AISI 316 / 1.4401
Bars: 20 × 3 to 50 × 5 mm typical
Mesh: WS 30/100, 30/50, 40/50
Surface: Pickled and passivated; plain or serrated
Fasteners: Stainless clips and bolts A2 / A4

Certified fabrication

AS/NZS 5131 CC3Certificate BMP 827566BSI Group Australia & New Zealand (Benchmark Product Certification)Valid to 31 Jul 2030

EN 1090 EXC3 · CECertificate 2797 CPR 827443BSI Group The Netherlands B.V. – Notified Body 2797

Documents supplied

Mill certificates (EN 10204 3.1) for flat bar and cross rod
Layout drawing with panel marks; IFC model on request
Dimensional and weld inspection record per panel batch
Pickling / passivation record
Packing list by panel mark

For a quotation, send us

Layout drawing or IFC model with supports and openings
Design load (kPa, kN or wheel load), clear span and deflection limit – or the WS code
Mesh, plain (M) or serrated (S), steel grade
Finish: G, PP or U, and coating standard
Fixing: clips, welding or bolts; toe plates and kick plates
Destination, design code and delivery schedule
