Connections carry the loads

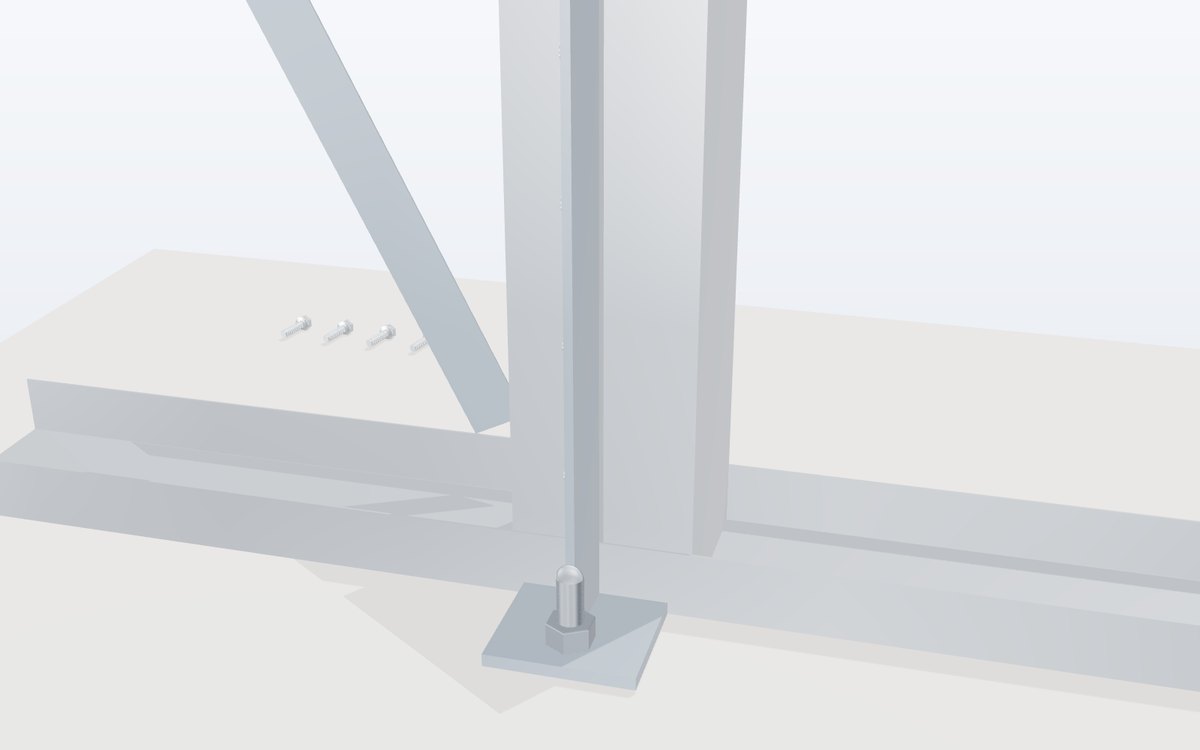

In LGS the connections are as important as the members: screws join studs to tracks and truss members at nodes; hold-downs and anchors take uplift and overturning from braced walls; straps and brackets tie trusses to walls.
| Connector | Use |
|---|---|
| 10g – 14g self-drilling screws | Member to member |
| Hold-down + anchor rod | Braced wall ends to slab |
| Strap + tensioner | Diagonal wall bracing |
| Truss tie-down bracket | Roof uplift to wall |
| Anchors (chemical / screw) | Bottom track to slab |
Anchors
Bottom tracks and hold-downs are anchored to the slab with chemical anchors, concrete screws or cast-in bolts, designed for uplift and shear.
Standards and requirements by market
Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.
United States
- AISI S100Cold-formed steel structural members
- AISI S240Cold-formed steel structural framing
- ASTM A1003 / C955Sheet steel and load-bearing studs
- IBC Ch. 22Steel – cold-formed framing
- Coating
- G60 (Z180) minimum for structural framing members
Australia / NZ
- AS/NZS 4600Cold-formed steel structures
- NASH StandardResidential and low-rise steel framing, Parts 1 & 2
- AS 1397Steel sheet and strip – G550, Z / AZ coatings
- NCCBuilding Code of Australia
- Corrosion
- coating class to NASH / AS 4312 exposure
Europe
- EN 1993-1-3Cold-formed members and sheeting
- EN 1090-4Execution of cold-formed structural elements
- EN 10346Continuously hot-dip coated steel – S350GD – S550GD
- EN 1993-1-1General rules
- CE
- EN 1090-1 for structural kits
Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.
Finishes
| Finish | Standards / notes |
|---|---|
| Fasteners | Class 3 / 4 coating, stainless |
