WS steel doors, frames & roll-up doors

Steel roll-up doors – storage, commercial & industrial

Rolling steel doors for self-storage, warehouses and RV bays – 26 gauge Grade 80 curtains, maintenance-free springs and wind-rated windlock versions.

United StatesAustralia / NZEurope

Request a quotation Specifications

Red roll-up doors on self-storage units

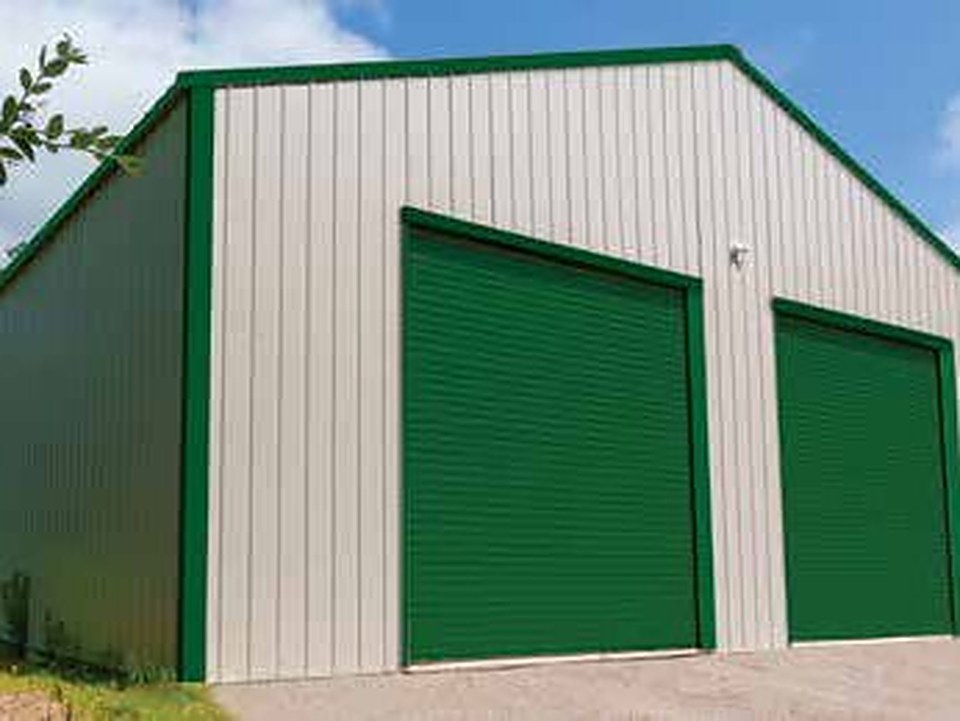

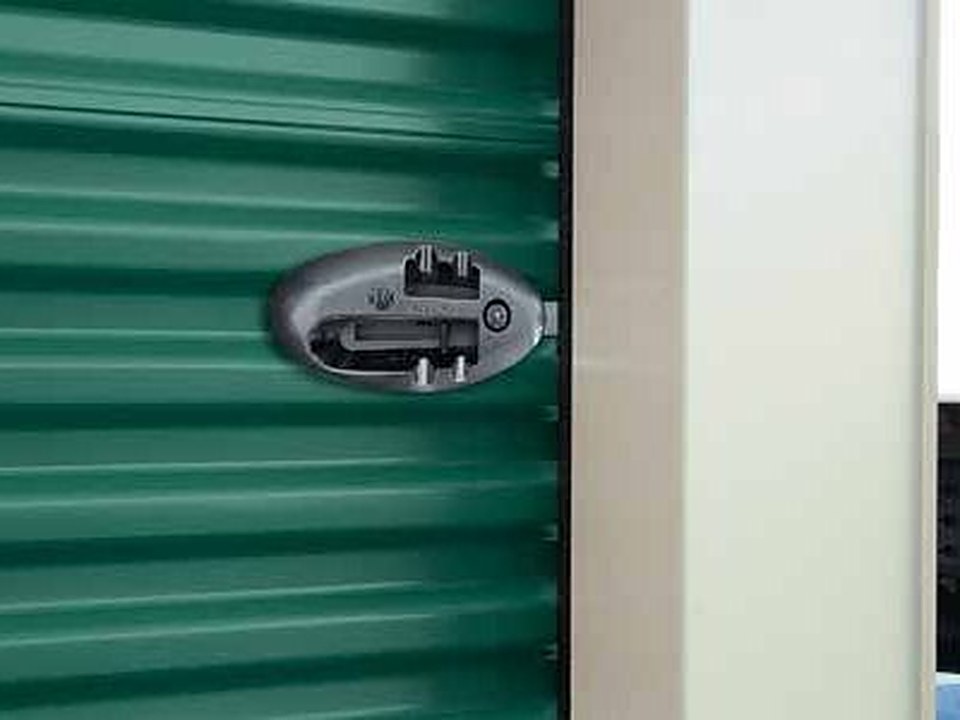

Green roll-up doors on a steel buildingCommercial roll-up doors on a steel building. Row of red roll-up doorsStorage row with roll-up doors. Roll-up door latch with padlock haspAnti-pry latch with padlock and cylinder option. Measuring a roll-up doorMeasure and specify – framed opening, headroom, side room.
  • 26 ga Grade 80 galvanised curtain
  • Self-storage, commercial, large commercial
  • Up to 18 ft wide (commercial)
  • Windlock versions over 180 mph
  • Anti-pry latch, cylinder option
  • 16 – 24 standard colours

Three grades

Roll-up door – measure and specify
Framed opening, headroom and side room – and the three grades.
Roll-up door grades
GradeUseConstructionWind
RU-SSelf-storage, residential, shedsLive axle, 9⅝ in drums, maintenance-free torsion springs, anti-padlock-open latch160 mph on 9 ft openings; windlock version
RU-CCommercial and industrial12 in spiral drums on ball bearings, 10 ga bottom bar, dual 12 ga slide-bolt latches, up to 18 ft wideby width; windlock version
RU-LLarge commercial – RV, boat, fleetTorque-tube spring assembly, 8:1 chain hoist, 10 ga guides140 mph on 11 ft; over 180 mph with windlocks

Curtain and finish

Curtains are roll-formed, factory-seamed sections of 26 gauge Grade 80 galvanised steel with a siliconized polyester finish, full-length felt strips at each drum for quiet operation, and a bottom bar with a pliable bulb seal and integrated blade astragal.

How to order

Measure the framed opening – width first, height second – and the headroom and side room available. For example a framed opening of 14'6" × 16'0" takes a 14'6" × 16'0" door. Send us the building drawings and we size the doors with the framed openings of the steel building.

Standards and requirements by market

Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.

United States

  • IBCWind load per exposure and building risk category
  • ASCE 7Minimum design loads – wind
  • DASMA 108Wind load test for garage and rolling doors
All United States standards →

Australia / NZ

  • AS/NZS 4505Garage doors and other large access doors
  • AS/NZS 1170.2Wind actions
All Australia & New Zealand standards →

Europe

  • EN 13241Industrial, commercial and garage doors – CE marking
  • EN 12424Resistance to wind load – classification
All Europe standards →

Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.

Finishes

FinishStandards / notes
CurtainSiliconized polyester in 16 – 24 standard colours
Guides & barGalvanised, zinc-coated steel

Frequently asked questions

Do the springs need maintenance?

Storage-grade doors use coated, oil-tempered torsion springs that need no lubrication; tension is adjusted with a ratcheting wheel.

Which grade for a warehouse?

Commercial (RU-C) for typical loading bays and workshops; large commercial (RU-L) with chain hoist for wide, tall or high-wind openings.
