- Thermal-break or non-thermal frames
- Sliders, single hung, fixed
- Sub-frame for metal-building walls
- Single or bay (ribbon) units
- Bronze, white, anodised, custom
- Simulated and tested thermal performance
Three window systems
| System | Frame | Types | Installation |
|---|---|---|---|

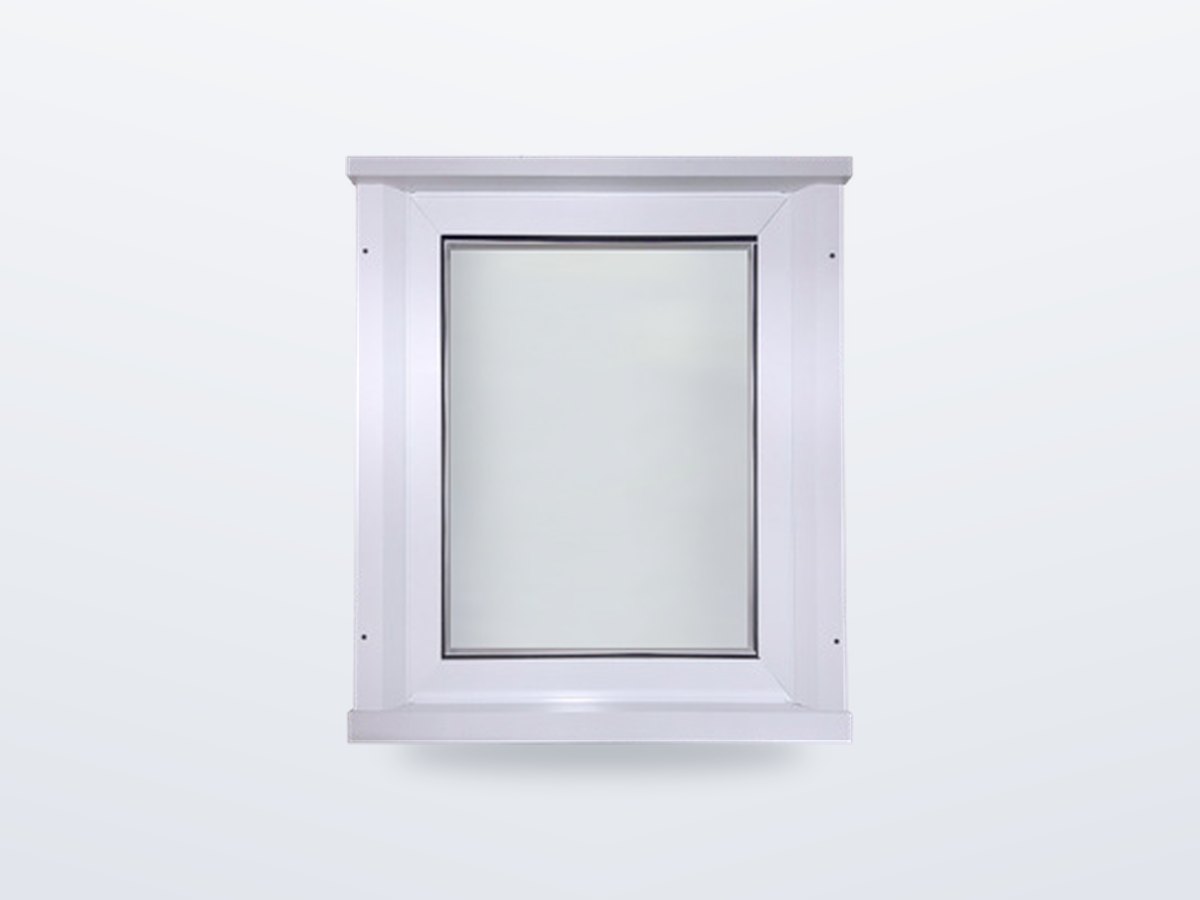

| Thermal frame for metal buildings | Thermally broken aluminium | Horizontal slider, single hung, fixed | Universal, regular or architectural fins; optional sub-frame |

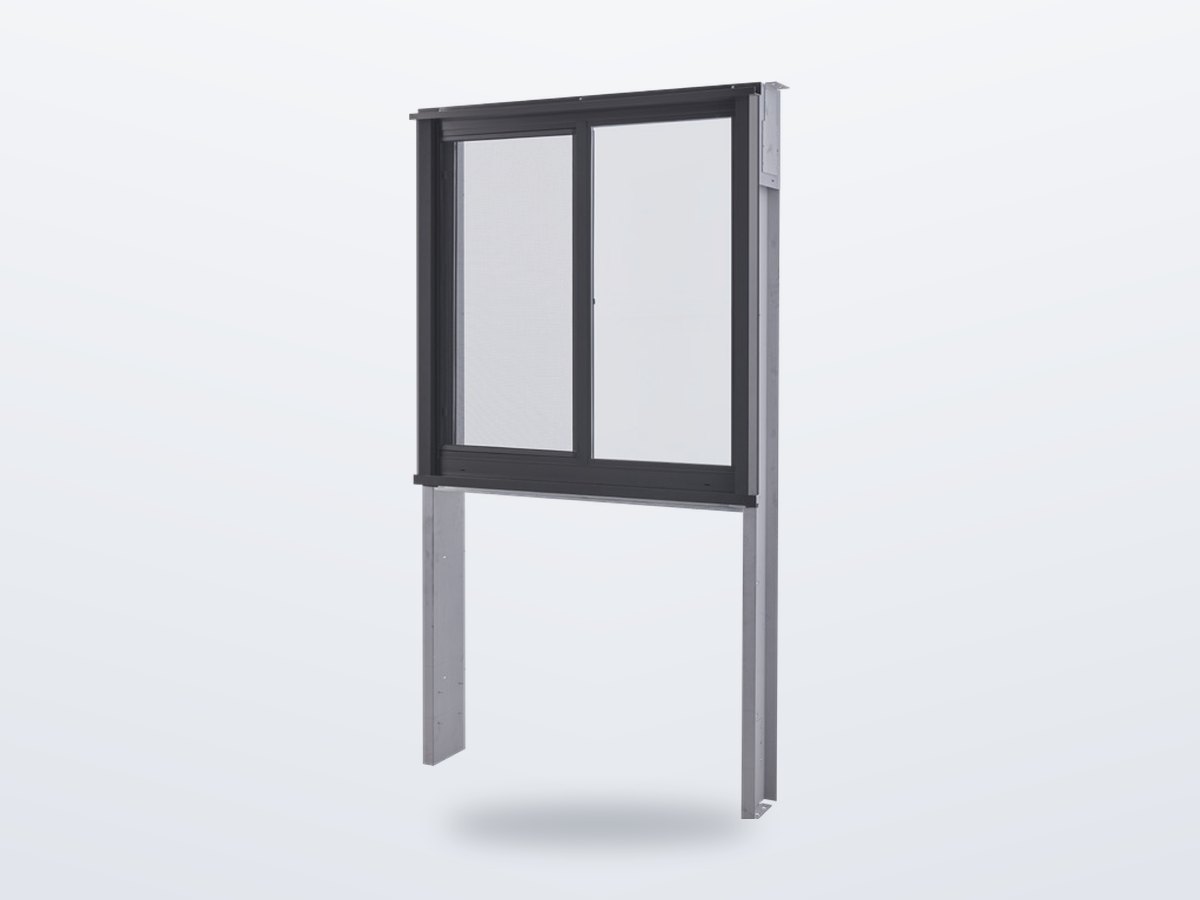

| Fixed thermal window | Thermally broken, integral nail fin | Fixed, single or ribbon | Framed opening with flashing |
| Economical non-thermal | Aluminium | Horizontal slider, fixed, single hung | No sub-frame required |
Coordinated with the building
Windows sit in the same girt system as the walk doors. We detail the framed openings, trims and flashings with the wall cladding so the window, sheeting and girts meet without site improvisation.
Standards and requirements by market
Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.
United States
- AAMA/WDMA/CSA 101/I.S.2/A440North American fenestration standard
- NFRC 100 / 200U-factor and solar heat gain rating
Australia / NZ
- AS 2047Windows and external glazed doors
- AS 1288Glass in buildings
Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.
Finishes
| Finish | Standards / notes |
|---|---|
| Standard | Painted bronze or white |
| Options | Anodised and custom colours |
