- Rods M8 – M30, 5.8 / 8.8 / A4-70 / HCR
- 45° chisel end, depth mark
- Nut and washer included
- Internally threaded sleeves for removable bolts
- Same steel as in the approval
- Galvanized or stainless
Match the approval
The capacity in an ETA or ESR applies to the mortar with the rod tested with it. World Steel supplies rods in the grade and finish named in the approval, cut to length with a chisel point and an embedment mark.
Range
| Item | Grade | Use |
|---|---|---|
| Anchor rod | 5.8 / 8.8 zinc or HDG | General structural |
| Anchor rod | A4-70 / A4-80 | Coastal, wet, chemical |
| Anchor rod | High-corrosion-resistant (HCR) | Swimming pools, tunnels |

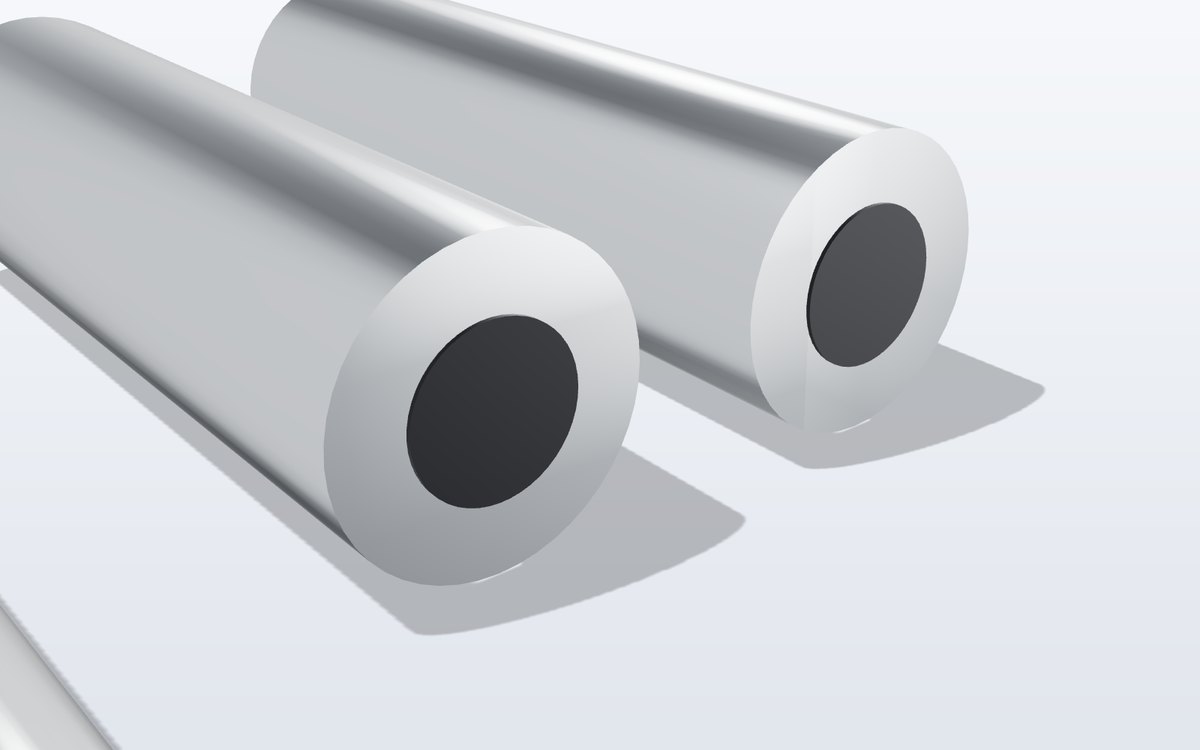

| Internally threaded sleeve | 5.8 / A4 | Removable fixings, flush finish |
Standards and requirements by market
Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.
Europe
- EN 1992-4Design of fastenings for use in concrete
- EAD 330499Bonded fasteners for concrete (ETA)
- EAD 330087Post-installed rebar connections with mortar
- EOTA TR 049Seismic performance C1 / C2
- Approval
- European Technical Assessment (ETA) for the mortar + rod
Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.
Finishes
| Finish | Standards / notes |
|---|---|
| Zinc | ISO 4042 |
| HDG | ISO 10684 |
| Stainless | ISO 3506 |
