- M16 – M64, class 4.6 / 5.6 / 8.8
- L, J, headed, straight with plate
- Hammer-head for anchor channels
- Rolled or cut threads, any projection
- Hot-dip galvanized or plain
- Supplied with nuts, washers and templates
Range
| Size | Pitch | As (mm²) | 4.6 ultimate | 8.8 ultimate | Typical use |
|---|---|---|---|---|---|
| M16 | 2.0 | 157 | 63 kN | 126 kN | Canopies, light frames |
| M20 | 2.5 | 245 | 98 kN | 203 kN | Portal frame pinned bases |
| M24 | 3.0 | 353 | 141 kN | 293 kN | Portal frames, mezzanines |
| M30 | 3.5 | 561 | 224 kN | 466 kN | Fixed bases, crane columns |
| M36 | 4.0 | 817 | 327 kN | 678 kN | Heavy frames, towers |
| M42 – M64 | 4.5 – 6.0 | 1120 – 2680 | 448 – 1072 kN | 930 – 2224 kN | Equipment, silos, tall columns |
Ultimate tensile loads As × fu are shown for selection only – anchor design checks steel, pull-out and concrete failure.
Types

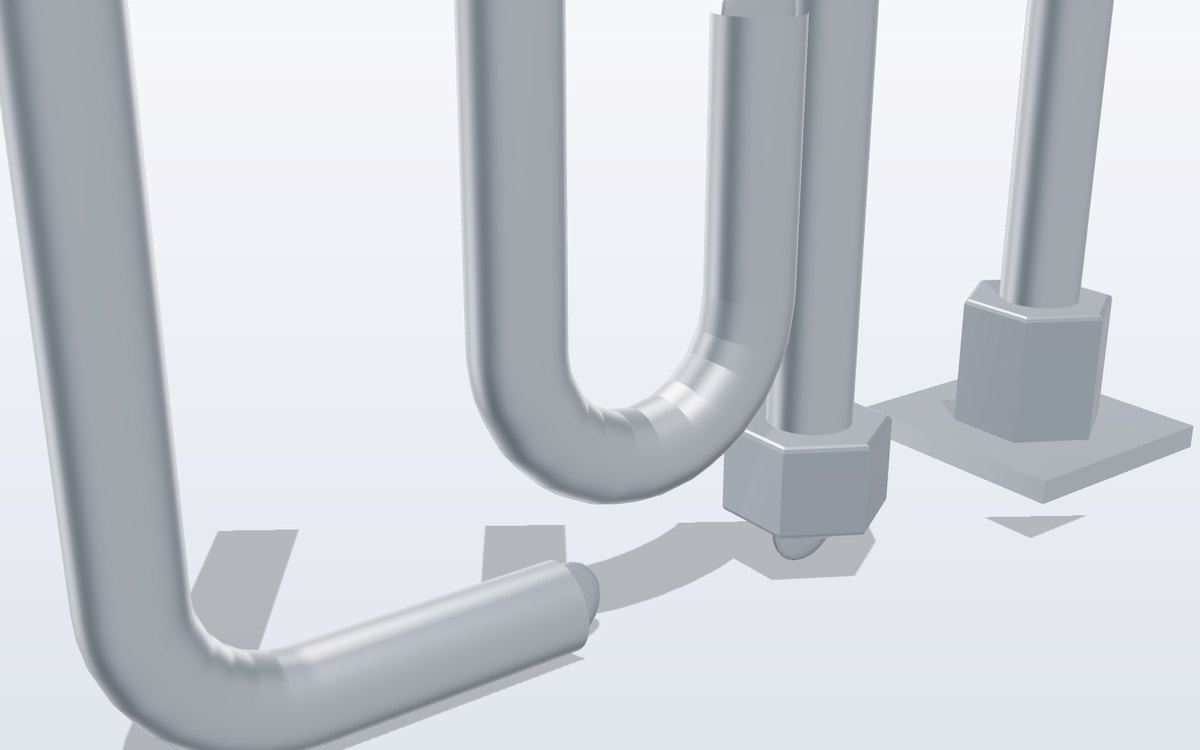

L and J bolts rely on the bend for anchorage and suit pinned bases; headed bolts – with a hex nut and plate washer at the bottom – carry higher tension through bearing on the concrete. Straight rods with an embedded plate are used for tall piers; hammer-head bolts fit cast-in anchor channels.
Fabricated in our plant
Anchor bolts are cut, threaded, bent and galvanized with the column steel, so the bolt pattern, projection and base plate holes come from the same model. Threads are protected with tape or caps for shipping.
Standards and requirements by market
Codes World Steel designs, fabricates and documents this product to – and the key geometric and load requirements in each market.
Australia / NZ
- AS 1111.1Commercial bolts 4.6
- AS 4100Steel structures – anchor bolts
- AS 5216Fastenings in concrete
Europe
- EN ISO 898-1Property classes
- EN 1992-4Fastenings in concrete
- EN 1993-1-8Anchor bolts in base joints
Summary for orientation only – the project specification, the adopted code edition and the authority having jurisdiction govern.
Finishes
| Finish | Standards / notes |
|---|---|
| Hot-dip galvanized | ISO 10684 / AS 1214 |
| Plain / black | Oiled, for painted or indoor connections |
